Note
•
Route 53 is a highly available, scalable, fully managed and Authoritative DNS
•
Route 53 is also a Domain Register
•
Can set Records: here
•
CNAME vs Alias: here
•
3 types of Health Checks: here
•
7 types of Routing Policies: here
Amazon Route 53
•
A highly available, scalable, fully managed and Authoritative DNS
•
Authoritative means the customer can update the DNS records
•
Route 53 is also a Domain Register
•
Ability to check the health of your resources
•
The only AWS service which provides 100% availability SLA
•
Route 53 is a reference to the traditional DNS port
Records
•
How you want to route traffic for a domain
•
Each record contains:
◦
Domain/subdomain Name — e.g., example.com
◦
Record Type — e.g., A or AAAA
◦
Value — e.g., 12.34.56.78
◦
Routing Policy — how Route 53 responds to queries
◦
TTL - amount of time the record cached at DNS Resolvers
•
Route 53 supports the following DNS record types:
◦
(must know) A / AAAA / CNAME / NS
◦
(advanced) CAA / DS / MX / NAPTR / PTR / SOA / TXT / SPF / SRV
Record Types
•
A - maps a hostname to IPv4
•
AAAA - maps a hostname to IPv6
•
CNAME - maps a hostname to another hostname
◦
The target is a domain name which must have an A or AAAA record
◦
Can’t create a CNAME record for the top node of a DNS namespace (Zone Apex)
◦
•
NS - Name Servers for the Hosted Zone
◦
Control how traffic is routed for a domain

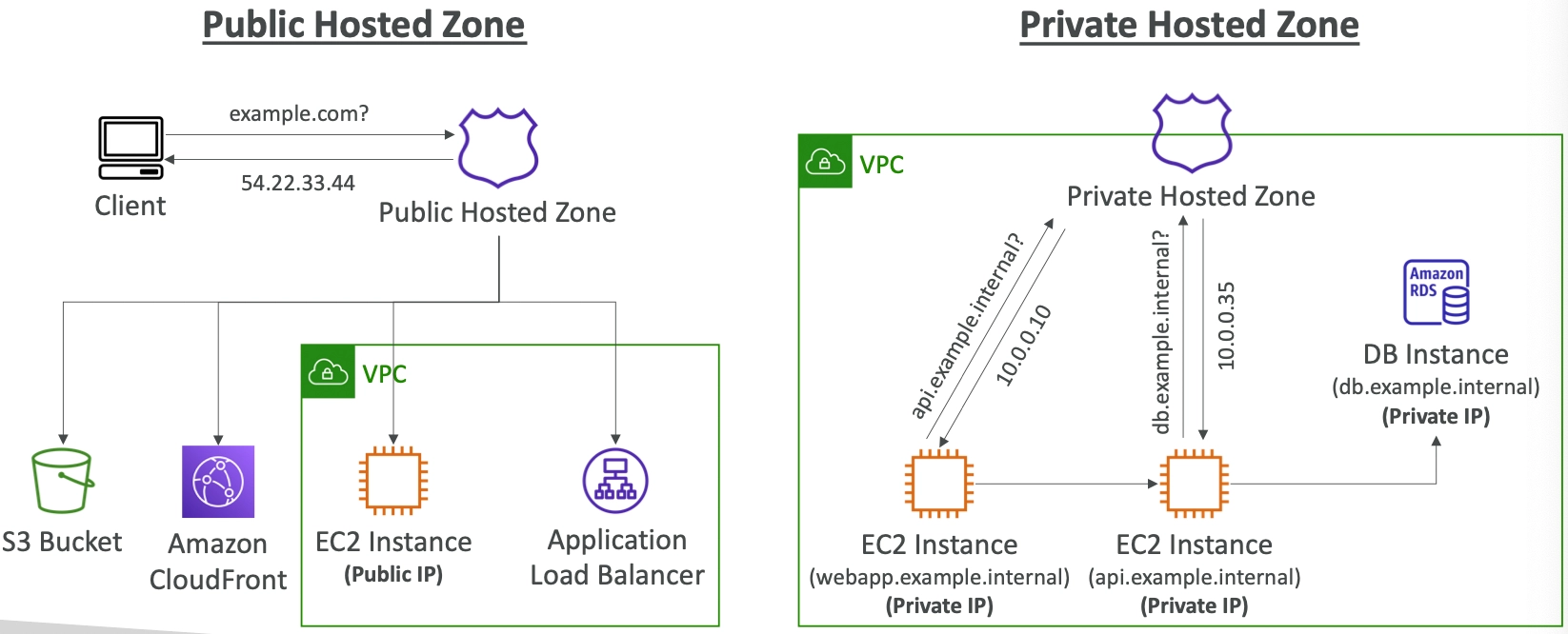

Hosted Zones
•
A container for records that define how to route traffic to a domain and its subdomains
•
Public Hosted Zones - contains records that specify how to route traffic on the Internet (public domain names)
•
Private Hosted Zones - contain records that specify how you route traffic within one or more VPCs (private domain names)
Records TTL (Time To Live)
•
High TTL - e.g. 24 hr
◦
Less traffic on Route 53
◦
Possibly outdated records
•
Low TTL - e.g. 60 sec.
◦
More traffic on Route 53 ($$)
◦
Records are outdated for less time
◦
Easy to change records
•
Except for Alias records, TTL is mandatory for each DNS record
CNAME vs Alias
•
AWS Resources (load Balancer, CloudFront…) expose an AWS hostname:
◦
•
CNAME:
◦
Points a hostname to any other hostname (app.mydomain.com ⇒ blabla.anything.com)
◦
ONLY FOR NON ROOT DOMAIN (aka. something.mydomain.com)
•
Alias:
◦
Points a hostname to an AWS Resource (app.mydomain.com ⇒ blabla.amazonaws.com)
◦
Works for ROOT DOMAIN and NON ROOT DOMAIN (aka. mydomain.com)
◦
Free of charge
◦
Native health check
Alias Records
•
Maps a hostname to an AWS resource
•
An extension to DNS functionality
•
Automatically recognizes changes in the resource’s IP addresses
•
Unlike CNAME, it can be used for the top node of a DNS namespace (Zone Apex), e.g. example.com
•
Alias Record is always of type A/AAAA for AWS resources (IPv4 / IPv6)
•
You can’t set the TTL
Alias Records Targets
•
Elastic Load Balancers
•
CloudFront Distributions
•
API Gateway
•
Elastic Beanstalk environments
•
S3 Websites
•
VPC Interface Endpoints
•
Global Accelerator accelerator
•
Route 53 record in the same hosted zone
•
You cannot set an ALIAS record for an EC2 DNS name
Health Checks
•
HTTP Health Checks are only for public resource
•
Health Check ⇒ Automated DNS Failover:
1.
Health checks that monitor an endpoint (application, server, other AWS resource)
2.
Health checks that monitor other health checks (Calculated Health Checks)
3.
Health checks that monitor CloudWatch Alarms
•
Health Checks are integrated with CW metrics

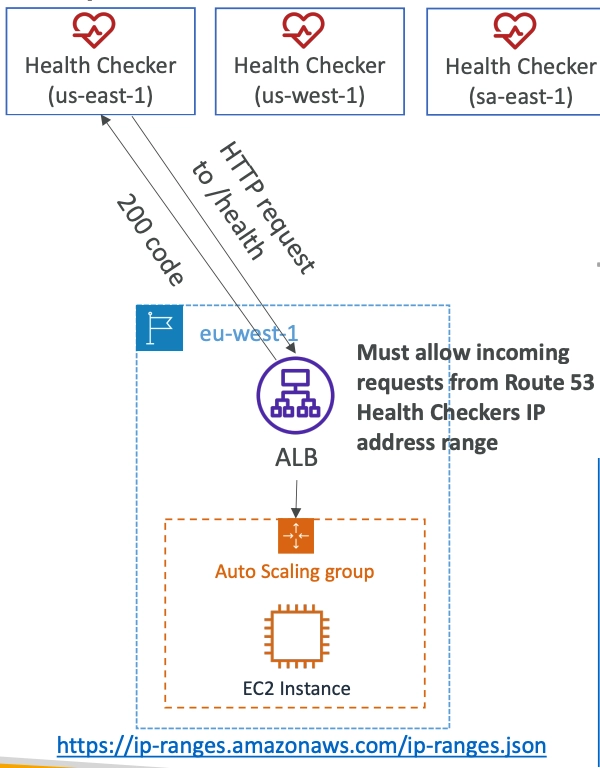

Monitor an Endpoint
•
About 15 global health checkers will check the endpoint health
•
Health Checks pass only when the endpoint responds with the 2xx and 3xx status codes
•
Health Checks can be setup to pass / fail based on the text in the first 5120 bytes of the response
•
Configure you router/firewall to allow incoming requests from Route 53 Health Checkers

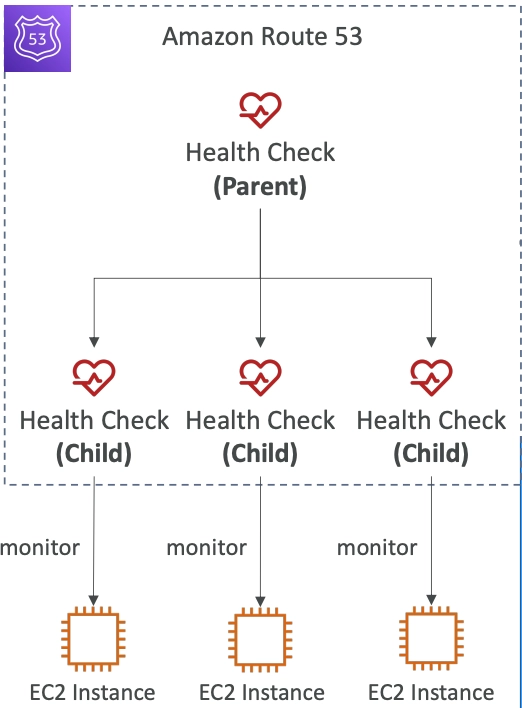

Calculated Health Checks
•
Combine the results of multiple Health Checks into a single Health Check
•
You can use OR, AND, or NOT
•
Can monitor up to 256 Child Health Checks
•
Specify how many of the health checks need to pass to make the parent pass
•
Usage: perform maintenance to your website without causing all health checks to fail

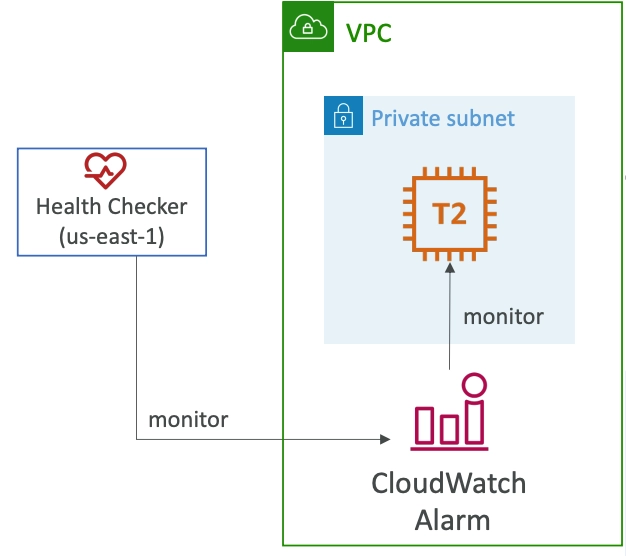

Private Hosted Zones
•
Route 53 health checkers are outside the VPC
•
They can’t access private endpoints
•
You can create a CloudWatch Metric and associate a CloudWatch Alarm, then create a Health Check that checks the alarm itself
Routing Policies
•
Define how Route 53 responds to DNS queries
•
Don’t get confused by the word “Routing”
◦
It’s not the same as Load balancer routing which routes the traffic
◦
DNS does not route any traffic, it only responds to the DNS queries
•
Route 53 Supports the following Routing Policies
◦
Simple
◦
Weighted
◦
Failover
◦
Latency based
◦
Geolocation
◦
Multi-Value Answer
◦
Geoproximity (using Route 53 Traffic Flow feature)

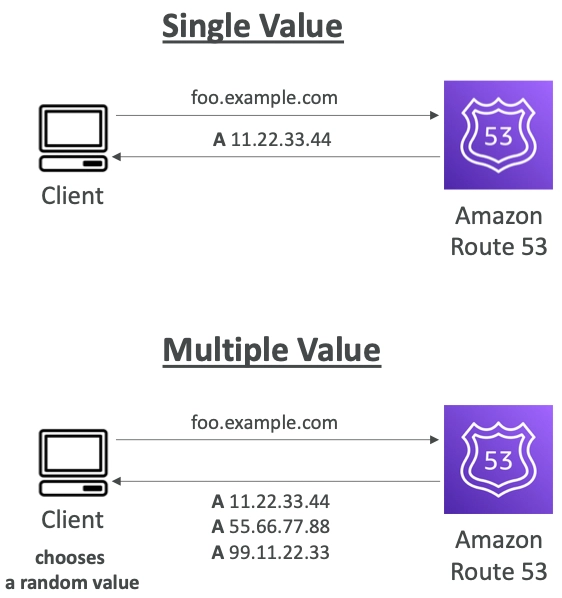

Simple Routing Policies
•
Typically, route traffic to a single resource
•
Can specify multiple values in the same record
•
If multiple values are returned, a random one is chosen by the client
•
When Alias enabled, specify only one AWS resources
•
Can’t be associated with Health Checks

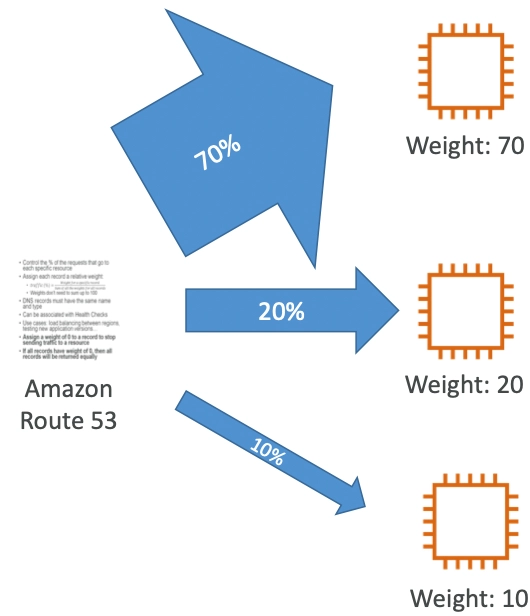

Weighted Routing Policies
•
Control the % of the requests that go to each specific resource
•
Assign each record a relative weight:
•
DNS records must have the same name and type
•
Can be associated with Health Checks
•
Use cases: load balancing between regions, testing new application versions …
•
Assign a weight of 0 to a record to stop sending traffic to a resource
•
If all records have weight of 0, then all records will be returned equally

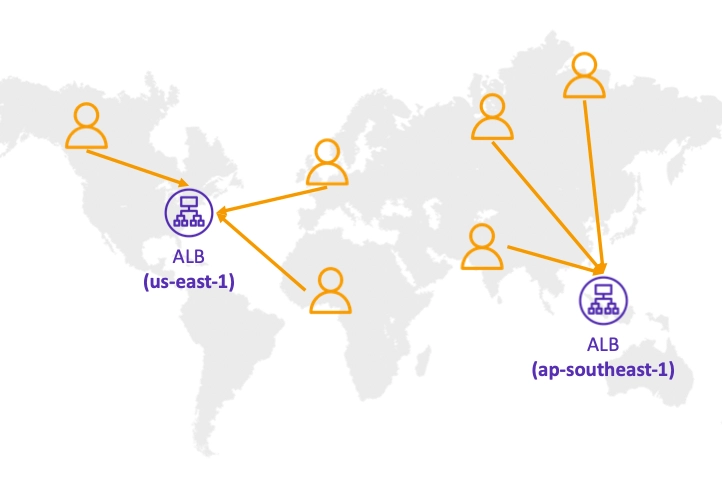

Latency-based Routing Policies
•
Redirect to the resource that has the least latency close to us
•
Super helpful when latency for users is a priority
•
Latency is based on traffic between users and AWS Regions
•
Germany users may be directed to the US
•
Can be associated with Health Checks

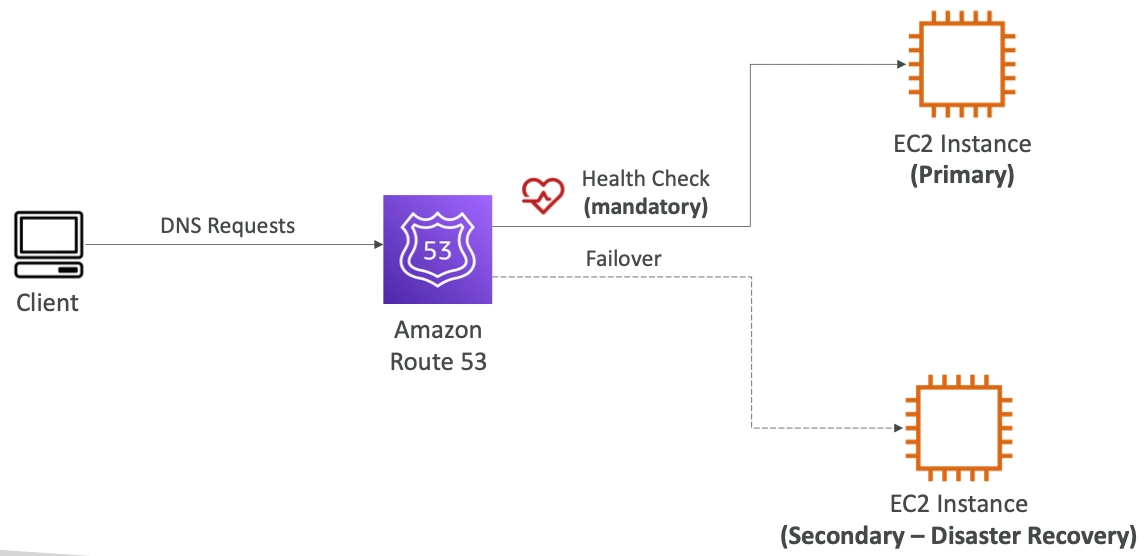

Failover (Active-Passive) Routing Policies

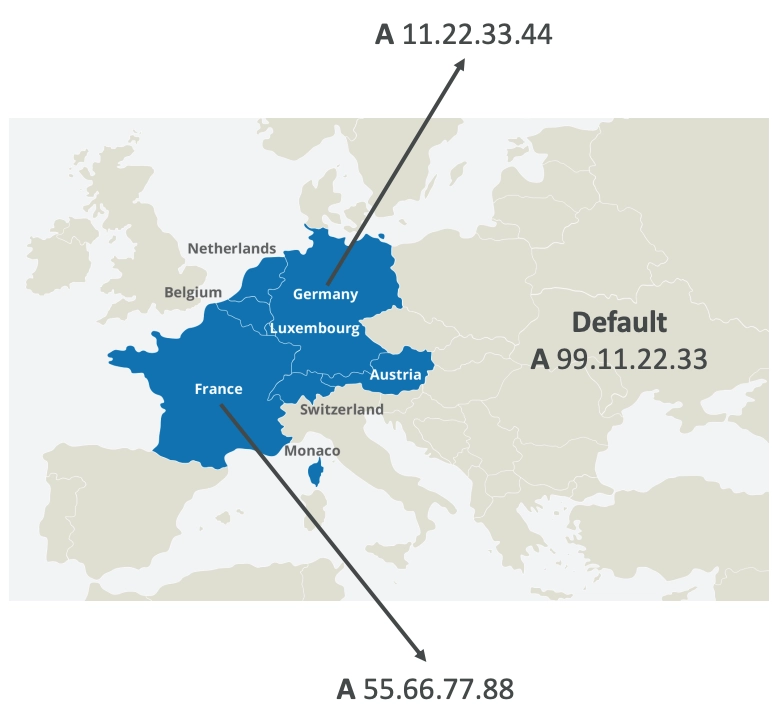

Geolocation Routing Policies
•
Different from Latency-based
•
This routing is based on user location
•
Specify location by Continent, Country or by US State
•
Should create a “Default” record
•
Use cases: website localization, restrict content distribution, load balancing
•
Can be associated with Health Checks

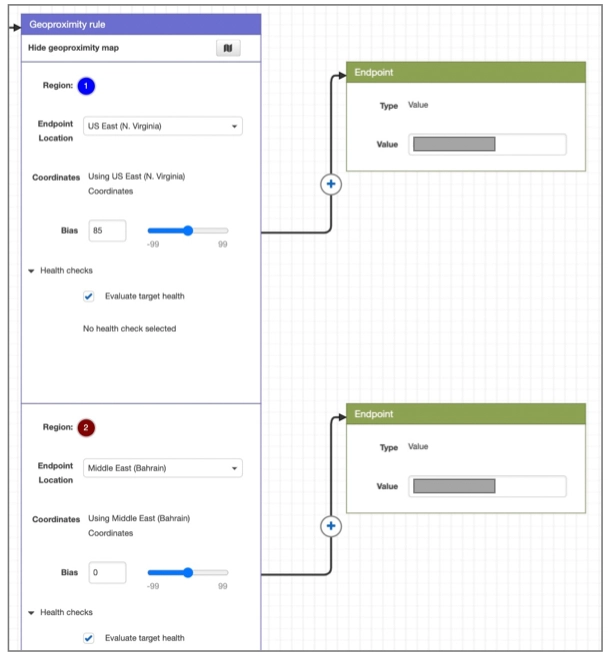

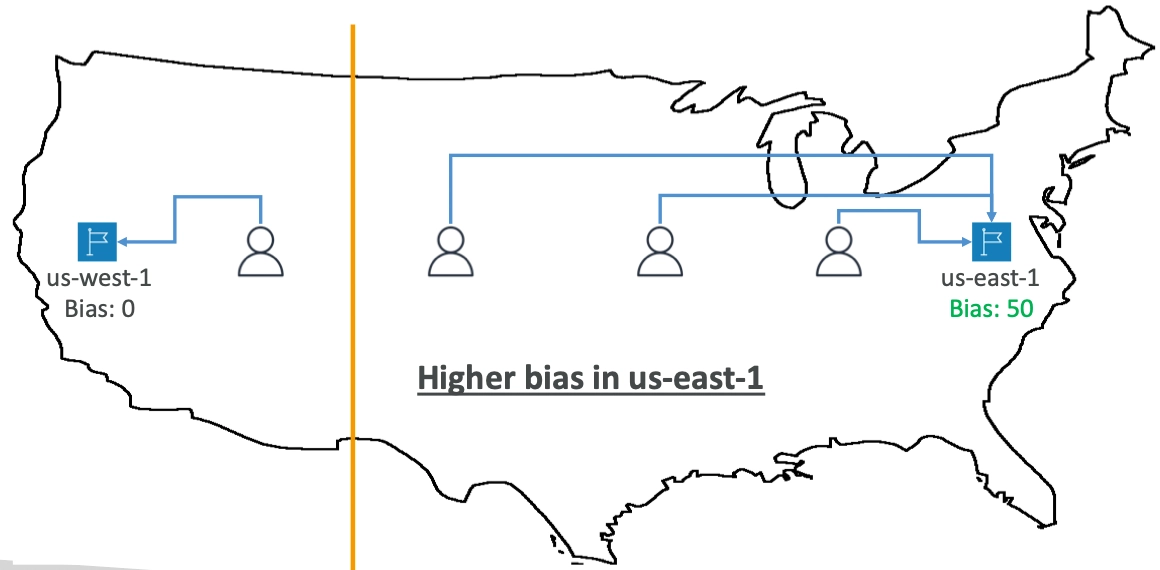

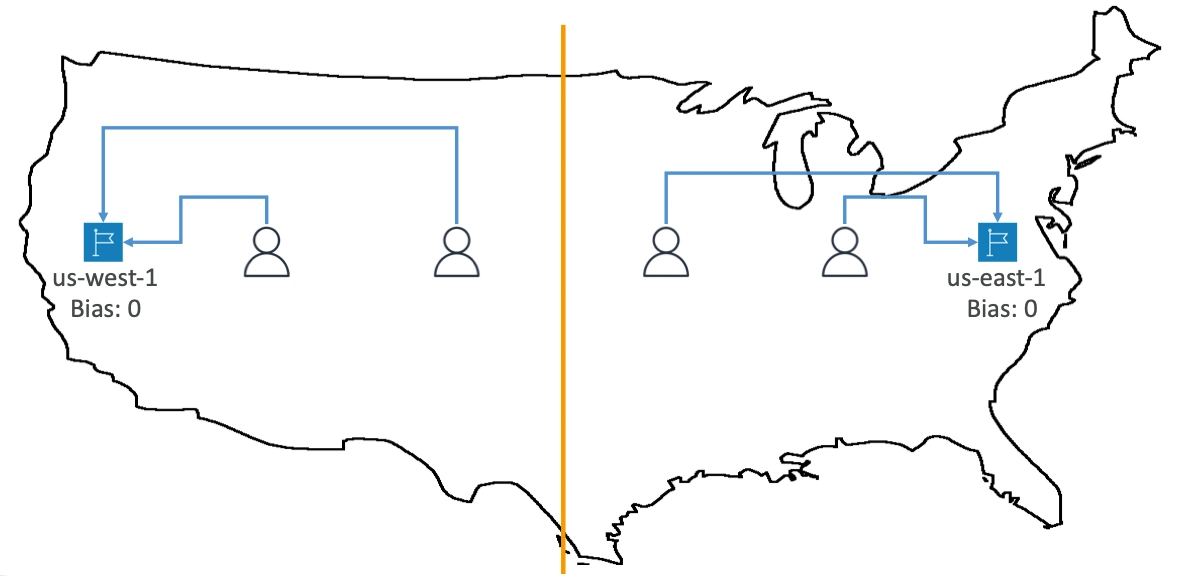

Geoproximity Routing Policies
•
Route traffic to your resources based on the geographic location of users and resources
•
Ability to shift more traffic to resources based on the defined bias
•
To change the size of the geographic region, specify bias values:
◦
To expand (1 to 99) - more traffic to the resource
◦
To shrink (-1 to -99) - less traffic to the resource
•
Resource can be:
◦
AWS resources (specify AWS region)
◦
Non-AWS resources (specify Latitude and Longitude)
•
You must use Route 53 Traffic Flow to use this feature

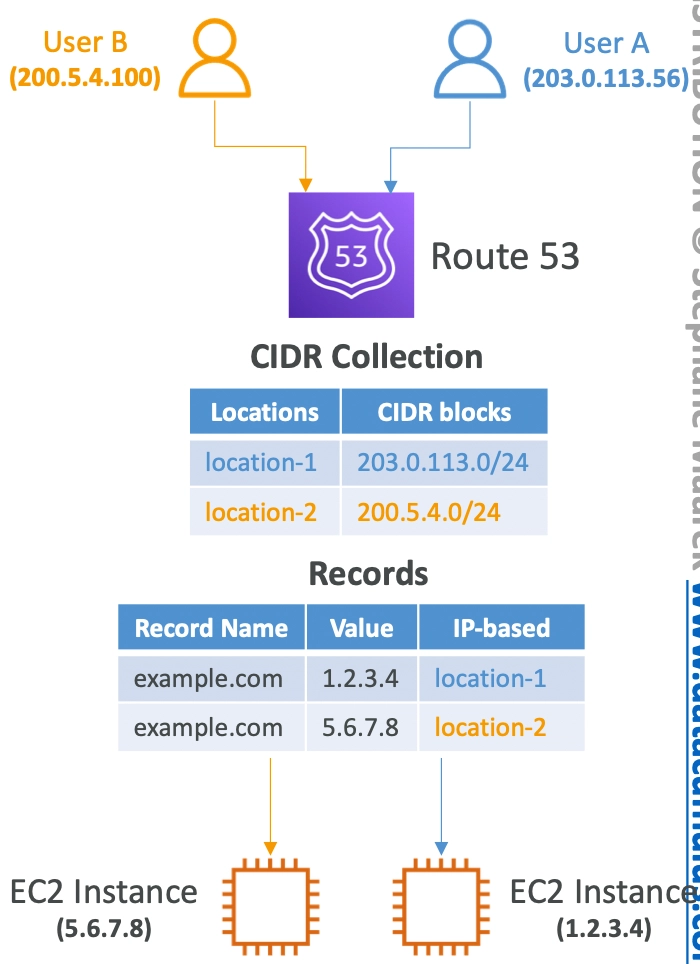

IP-based Routing Policies
•
Routing is based on clients’ IP addresses
•
You provide a list of CIDRs for your clients and the corresponding endpoints/locations
•
Use cases: Optimize performance reduce network costs
•
Example: route end users from a particular ISP to a specific endpoint
Multi-Value Routing Policies
•
Use when routing traffic to multiple resources
•
Route 53 return multiple values/resources
•
Can be associated with Health Checks (return only values for healthy resources)
•
Up to 8 healthy records are returned for each Multi-Value query
•
Multi-Value is not a substitute for having an ELB
Traffic flow
•
Simplify the process of creating and maintaining records in large and complex configurations
•
Visual editor to manage complex routing decision trees
•
Configurations can be saved as Traffic Flow Policy
◦
Can be applied to different Route 53 Hosted Zones
◦
Supports versioning
Domain Registar vs DNS Service
•
You buy or register your domain name with a Domain Registrar typically by paying annual charges (e.g., GoDaddy, Amazon Registrar Inc., …)
•
The Domain Registrar usually provides you with a DNS service to manage your DNS records
•
But you can use another DNS service to manage your DNS records
•
Example: purchase the domain from GoDaddy and use Route 53 to manage your DNS records
3rd Party Registrar with Amazon Route 53
•
If you buy your domain on a 3rd party registrar, you can still use Route 53 as the DNS Service provider
1.
Create a Hosted Zone in Route 53
2.
Update NS Records on 3rd party website to use Route 53 Name Servers
•
Domain Registrar ≠ DNS Service
•
But every Domain Registrar usually comes with some DNS features
