MNIST Digit Classification with Convolutional Neural Networks
This project aims to compare the performance of hand-written digit classification Convolutional Neural Network (CNN) models in parallel and sequential modes. Two scripts, classify_parallel.py and classify_sequential.py, are provided for this purpose. The CNN model itself is implemented in the CNN_MNIST.py script.
Getting Started
Prerequisites
Make sure you have the following dependencies installed:
•
Python (>=3.6)
•
NumPy
•
PyTorch
•
TorchVision
•
Matplotlib
Installation
1.
Clone this repository to your local machine using:
git clone <https://github.com/kcrmin/CNN_Hardware_Comparison.git>
Shell
복사
2.
Install the required Python packages:
pip install -r requirements.txt
Shell
복사
Usage
1.
Run the program in sequential mode:
python classify_sequential.py
Shell
복사
2.
Run the program in parallel mode:
python classify_parallel.py
Shell
복사
Code Structure
CNN_MNIST.py
•
Defines a CNN model for MNIST digit classification.
•
Provides functions for data loading and model initialization.
classify_parallel.py
•
Demonstrates parallel processing for predicting MNIST digits using the CNN model defined in CNN_MNIST.py.
•
Utilizes the multiprocessing module to parallelize the prediction process, improving efficiency.
classify_sequential.py
•
Demonstrates sequential processing for predicting MNIST digits using the CNN model defined in CNN_MNIST.py.
•
Does not use parallelization and processes predictions sequentially.
File Structure
mnist-cnn.pth
•
Pre-trained model weights saved in PyTorch format.
•
Although model was trained using CNN_MNIST, had to delete the training functions due to the readability.
requirements.txt
•
Contains the required Python packages to run the scripts.
•
Enhance the usability as it simplifies the setup process.
Configuration
Before running the scripts, you can configure the meta_data to adjust the parameters according to your requirements. Here's a brief overview of the meta_data configuration:
# Define meta_data
meta_data["batch_size"] = 1
meta_data["num_rows"] = 200
meta_data["num_columns"] = 300
meta_data["num_cells"] = meta_data["num_rows"] * meta_data["num_columns"]
meta_data["threads"] = 2
Python
복사
Results

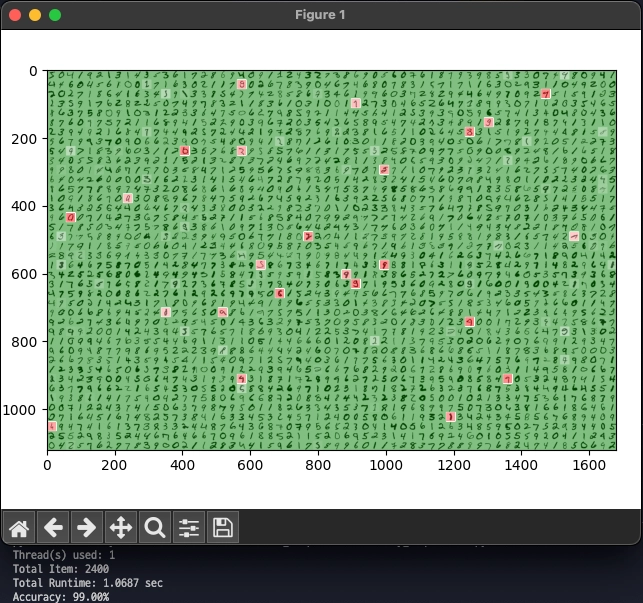

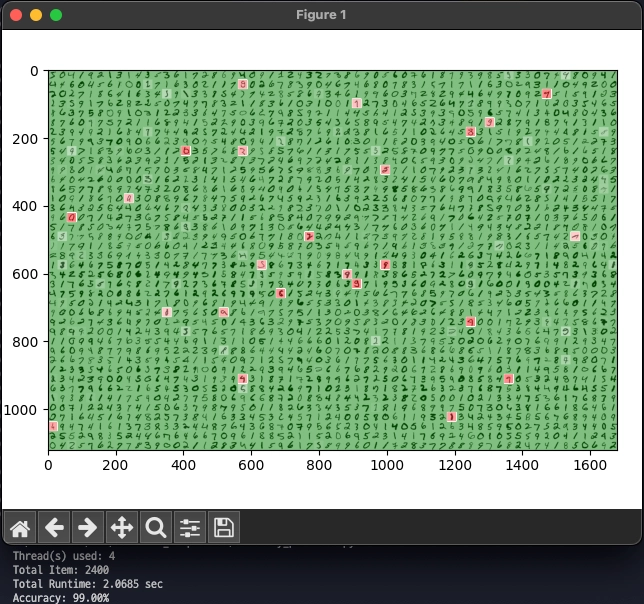

After running each script, the following information will be printed:
•
Number of threads used (only applicable for parallel mode)
•
Total number of items classified
•
Total runtime
•
Accuracy

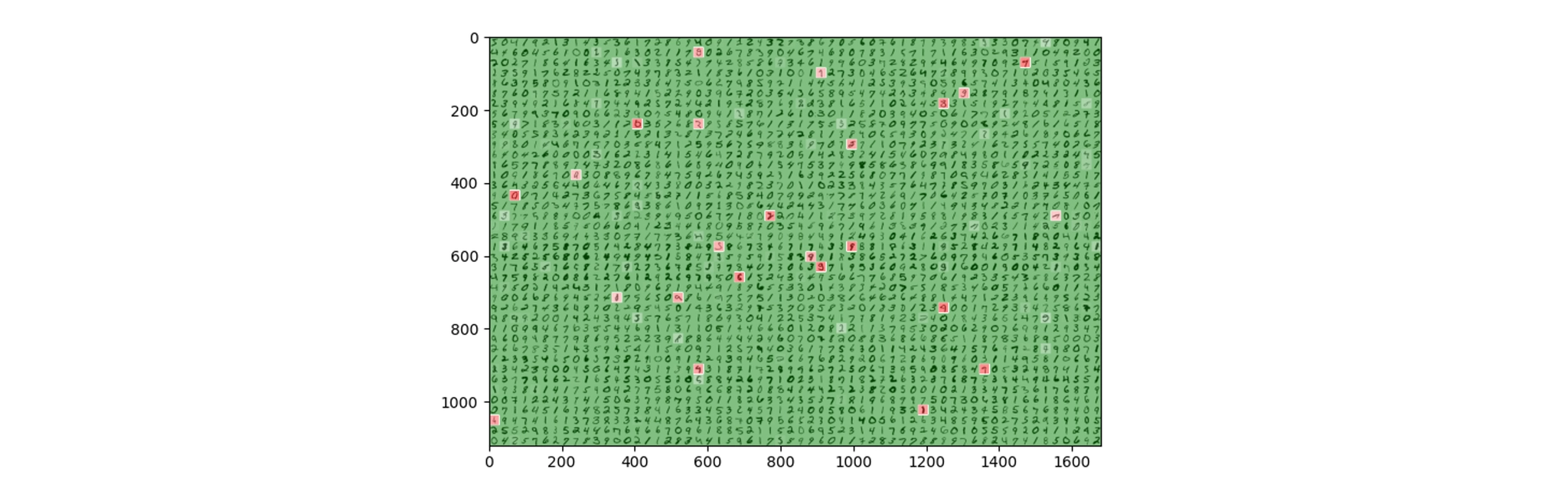

Additionally, the visualization of the mask image representing the classification results will be displayed.
